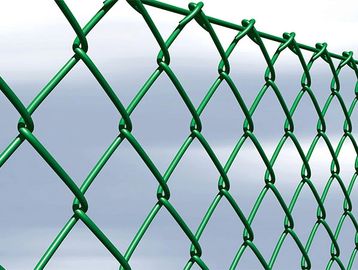

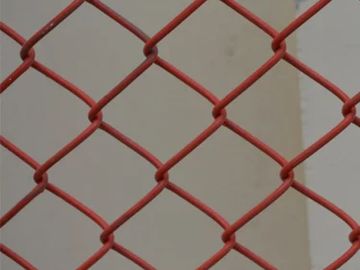

PVC Coated G.l. Chain Link Fence Fabric
Material
PVC Coated Galvanized Steel Wire Colors : Green, Blue, Black, Red
Nominal Wire Diameters :
- G.l. Dia/P.V.C. Dia :Standard Range.1.6mm/2.5mm,1.8mm/2.6mm
- 2.3mm/3.2mm,2.5mm/3.55mm,3.0mm/4.0mm, 3.55mm/4.75mm.
- Other diameters and types on enquiry.
Nominal Mesh Sizes :
- 40mm, 50mm, 65mm, 75mm, 90mm.
- 25mm in lower wire gauge only
Nominal Mesh Heights :
- 0.9M to 9.0M in steps of 0.3M.
- Other special heights can be considered on specific enquiries.
- These heights are achieved without helix joints.
Mesh Ends :
Generally Knuckled.Twisted ends can be provided on specific orders in certain sizes.
Roll Length :
- Generally 10M for heavier gauge wires and 20/22M for lighter gauge wires.
- Other lengths can be considered on specific enquiries.
